Fully new with one year warranty.

Tray version authorized by Intel.

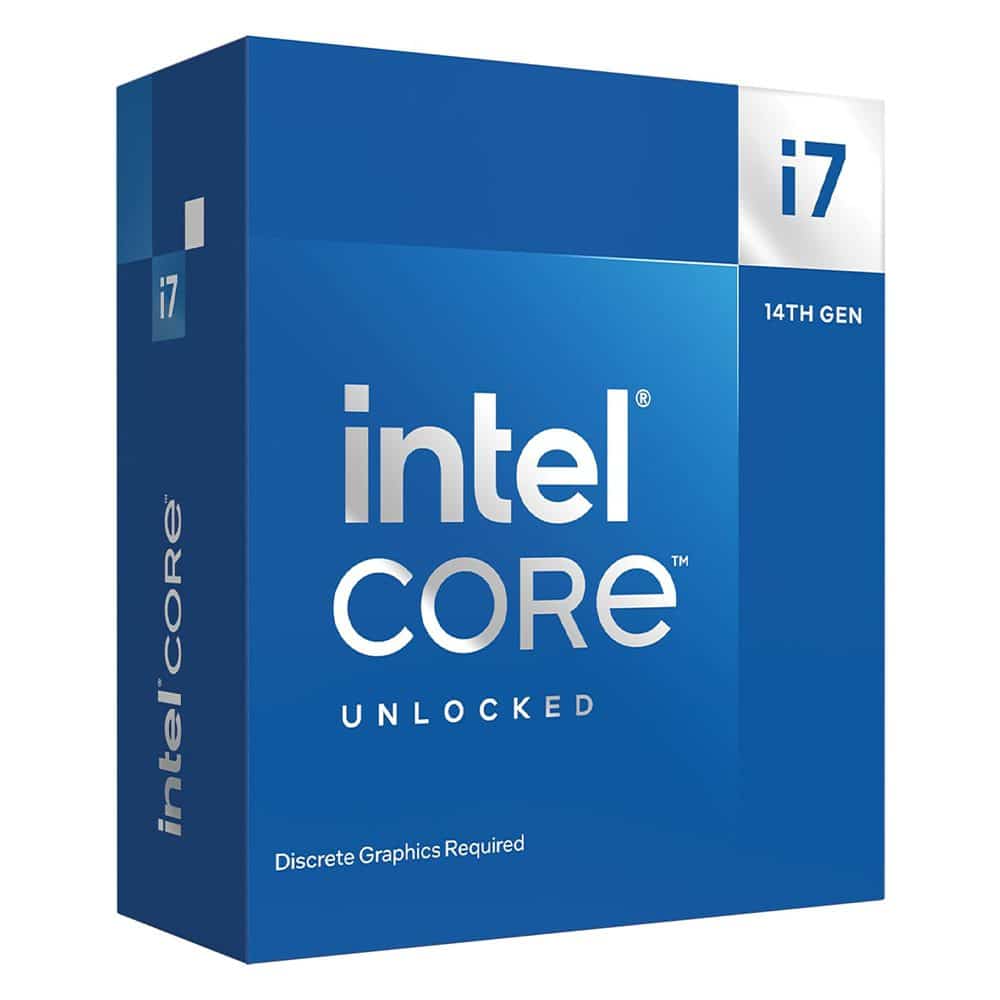

Intel® Core™ i7-14700KF Desktop Processor Model Brand Intel Processors Type Desktop Series Core i7 14th Gen Name Core i7-14700KF Model BX8071514700KF

Details CPU Socket Type LGA 1700 Core Name Raptor Lake # of Cores 20-Core (8P+12E) # of Threads 28-Threads Operating Frequency Performance-core

Base Frequency: 3.4 GHz Efficient-core Base Frequency: 2.5 GHz Max Turbo Frequency Intel Turbo Boost Max Technology 3.0 Frequency: Up to 5.6 GHz

P-core Max Turbo Frequency: Up to 5.5 GHz E-core Max Turbo Frequency: Up to 4.3 GHz L2 Cache 28MB L3 Cache 33MB

Manufacturing Tech Intel 7 64-Bit Support 64-Bit Hyper-Threading Support Yes Memory Types DDR4 3200 / DDR5 5600 Memory Channel 2 Max Memory Size 192 GB Max Memory Bandwidth 89.6 GB/s Virtualization Technology Support Yes Integrated Graphics None Integrated Graphics Scalability 1S Only PCI Express Revision 5.0 / 4.0 PCI Express Configurations Up to 1×16+4, 2×8+4 Max Number of PCI Express Lanes 20 Thermal Design Power 125W Max Turbo Power 253W Cooling Device Cooling device not included – Processor Only Compatible Desktop Chipsets Intel H610 / Intel H670 / Intel B660 / Intel Q670 / Intel W680 / Intel Z690 / Intel H770 / Intel B760 / Intel Z790 * BIOS update may be required when used with some old chipset motherboard Operating System Supported Linux / Windows 10 (22H2, 21H2) / Windows 11 (22H2, 21H2) Advanced Technologies Intel Gaussian & Neural Accelerator: 3.0 Intel Thread Director Intel Deep Learning Boost (Intel DL Boost) on CPU Intel Speed Shift Technology Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Technology: 2.0 Intel Hyper-Threading Technology Intel 64 Instruction Set: 64-bit Instruction Set Extensions: Intel SSE4.1, Intel SSE4.2, Intel AVX2 Idle States Enhanced Intel SpeedStep Technology Thermal Monitoring Technologies Intel Volume Management Device (VMD) Security & Reliability Intel Standard Manageability (ISM) Intel Control-Flow Enforcement Technology Intel AES New Instructions Secure Key Intel OS Guard Execute Disable Bit Intel Boot Guard Mode-based Execute Control (MBEC) Intel Virtualization Technology (VT-x) Intel Virtualization Technology for Directed I/O (VT-d) Intel VT-x with Extended Page Tables (EPT)   Additional Information Date First Available October 16, 2023   Introduction to the Intel i7-14700KF Processor The Intel i7-14700KF processor is a cutting-edge component designed to meet the demands of high-performance computing. As a part of Intel’s renowned Core i7 series, this processor is engineered to deliver exceptional speed, efficiency, and reliability for both professional and personal use. Key Features and Specifications One of the standout features of the Intel i7-14700KF processor is its impressive core and thread count, providing enhanced multitasking capabilities. Equipped with 8 cores and 16 threads, this processor ensures smooth and efficient performance, even under heavy workloads. Additionally, the base clock speed of 3.6 GHz, which can be boosted up to 5.0 GHz, offers incredible processing power for demanding applications. The ‘KF’ designation indicates that this model is unlocked, allowing for overclocking to achieve even higher performance levels. However, it also signifies the absence of integrated graphics, which is ideal for users who prefer to use a dedicated GPU for superior graphical performance. Performance and Efficiency The Intel i7-14700KF processor excels in both performance and efficiency. Thanks to Intel’s advanced 10nm SuperFin technology, this processor provides a significant boost in performance while maintaining energy efficiency. Whether you’re a gamer, content creator, or professional user, the Intel i7-14700KF ensures a seamless and powerful computing experience. Moreover, support for the latest DDR4 memory and PCIe 4.0 enhances overall system responsiveness and speed, ensuring that your tasks are completed quickly and efficiently. Conclusion In summary, the Intel i7-14700KF processor is a remarkable choice for those seeking top-tier performance and reliability. Its combination of high core and thread count, overclocking potential, and advanced technology makes it a versatile and powerful addition to any high-performance PC setup.
